Newflex leads the industry with its unique technology and uniqueness.

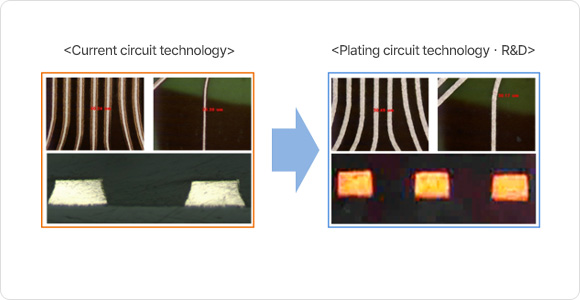

  • FINE PATTERN
    Current circuit technology : circuit resolution limitations due to etching,
    Circuit/interval not below 30um/30um
    Plating circuit technologyㆍR&D : Overcoming circuit resolution by plating,
    Circuit/interval 30um/30um or less possible

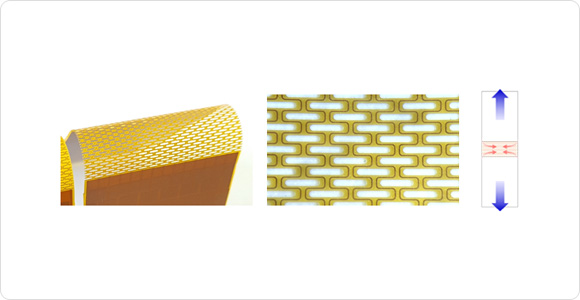

  • Stretchable FPC
    A new type of FPCB that allows stretching and bending rather
    than simply bending by using elastic materials or changing the shape.

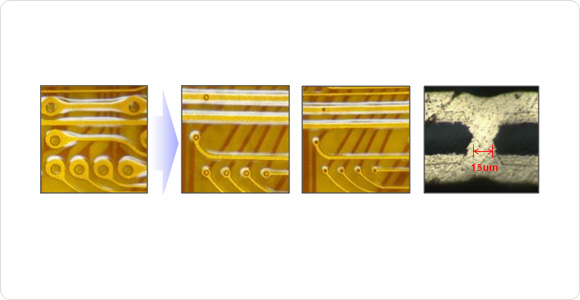

  • DCD Technology
    Technology to process holes or shapes using chemical etching using methods
    other than CNC or laser.
    (DCD : Dielectric Corrosion Drill)

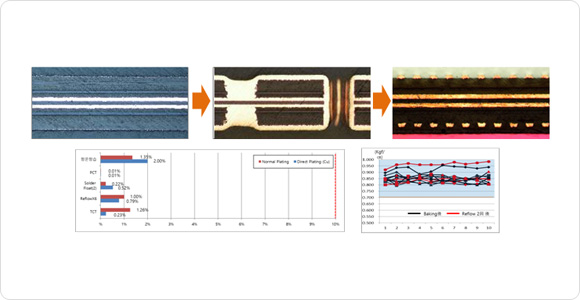

  • Direct Metaliztion
    High-density and high-quality circuits are realized with low copper
    thickness by plating directly on the insulator surface of the out layer.

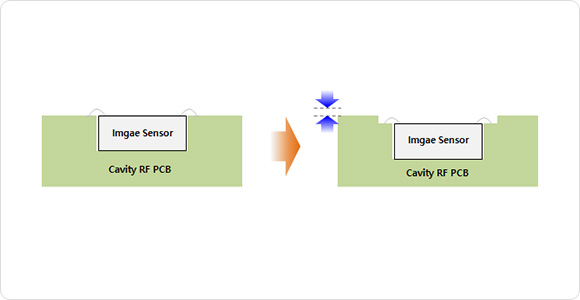

  • Cavity Camera Rigid Flex PCB
    Developed and possessed depth and related spec optimization technology for
    the cavity for the image sensor required to reduce the thickness of the camera module.

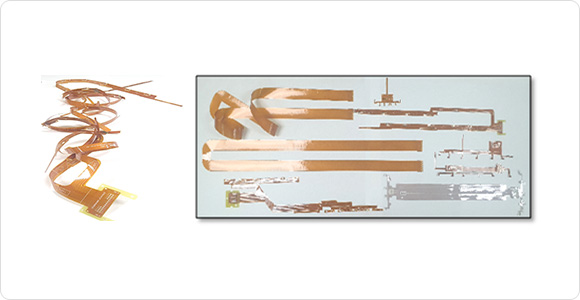

  • Long Flex
    Developing and securing long flex PCB manufacturing technology that replaces
    the wiring harness used to connect batteries of electric or hybrid vehicles
    and is thin and light, yet more than twice the length of existing.
